Steet wall mount enclosure

Single door wall mount enclosure

Supply Include

Enclosure and door ,mounting plate, lock system,

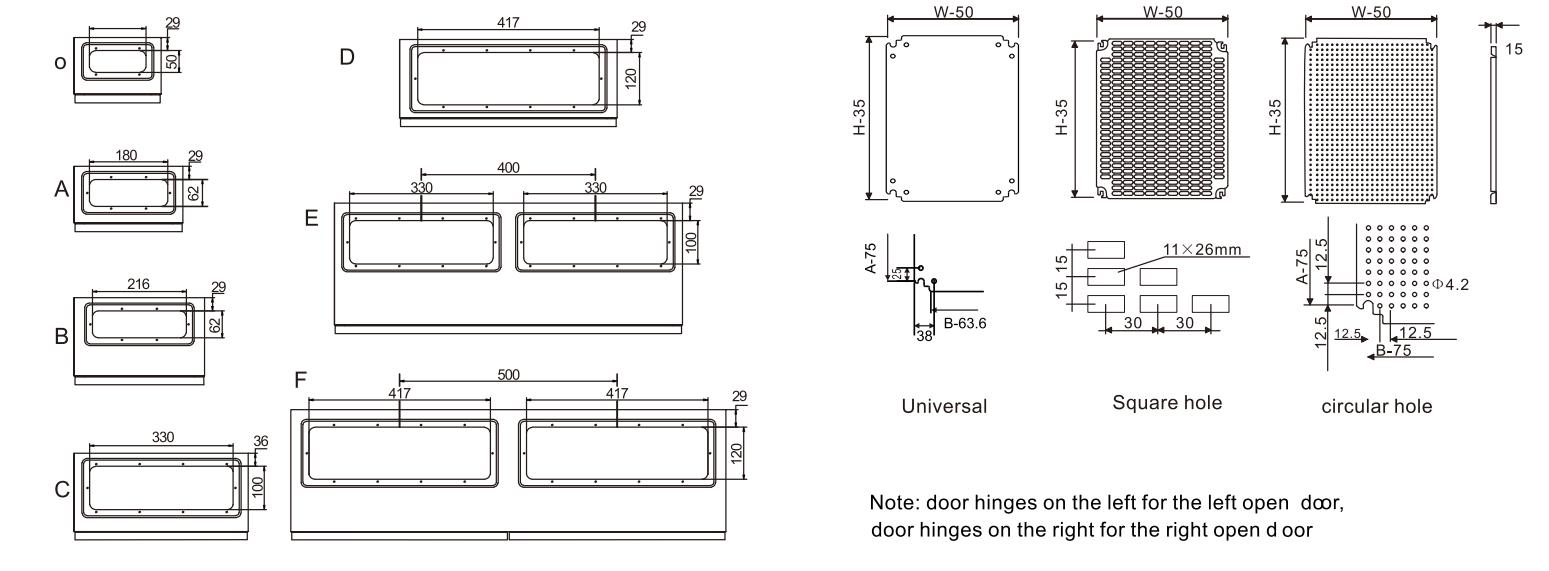

gland plate, sealing gasket and fixing accessories.

Standard Configuration

Paint finish epoxypolyester powder coating textured finish Color: RAL 7032 or RAL 7035

Protection degree:IP 66

Against mechanical impacts: IK 10

Thickness:

Enclosure & door: sheet steel 1.2mm till size

ST6 820 then 1.5mm.

Mounting p late:

zinc-coated steel 1.5mm till size ST6 820 then 2.0mm
